Vespel® Polyimide

The following grade is being offered at a SPECIAL SALE PRICE

To Make An Offer, Click Here


Vespel
® SP-211
Vespel
® SP-211 has 10% PTFE and 15% graphite by weight added to the base resin for the lowest coefficient of friction over a wide range of operating conditions. It also has excellent wear resistance up to 300°F (149°C). Typical applications include sliding or linear bearings as well as many wear and friction uses listed above.

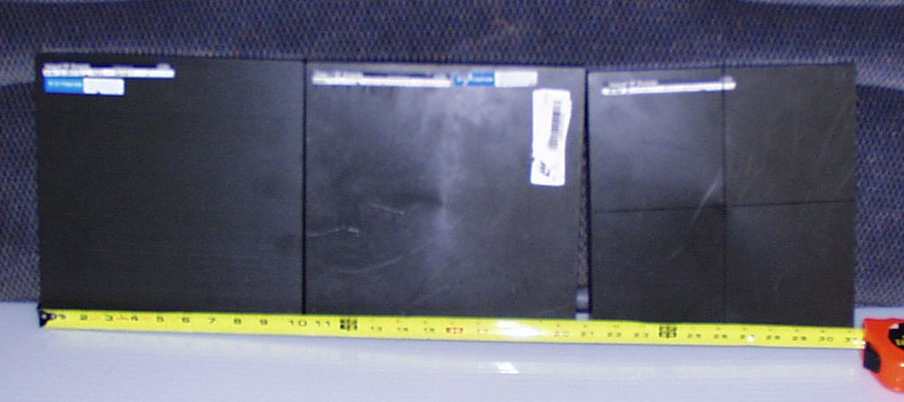

3 plates sp211 dupont labels.jpg (25635 bytes)

3 plates SP-211     1"x10"x10"

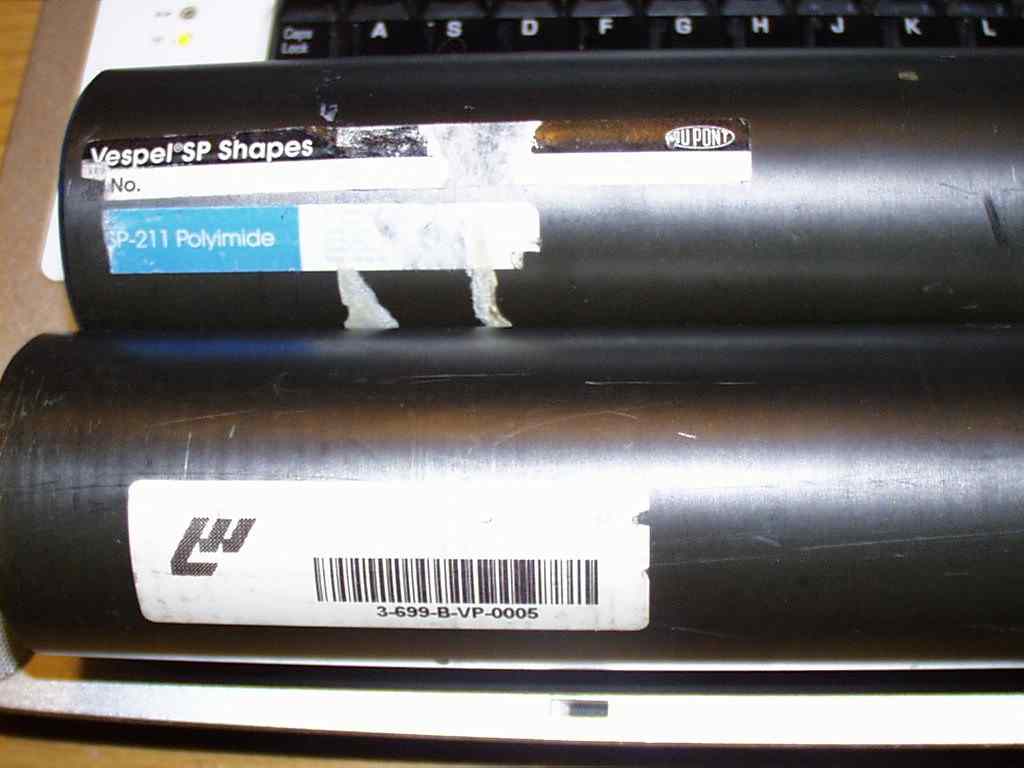

sp211 rod with dupont label.jpg (42958 bytes)

2 .5" Diameter Rods SP-211 ( 2PCS @ 20" APPROX EACH )



To Make An Offer, Click Here



GENERAL PROPERTIES

Vespel
® is one of the highest performing engineering Plastics currently available. Vespel® will not melt and can operate continuously cryogenic temperatures to 550°F (288°C), with excursions to 900°F (482°C). Vespel® parts consistently exhibit superior performance in a variety of applications requiring low wear and long life in severe environments.

VESPEL
® FEATURES

• Excellent temperature resistance • High wear resistance (especially SP-211) • Dimensionally stable • Resistant to radiation • Extremely low outgassing • Relatively easy to machine

VESPEL® APPLICATIONS

• Rotary seal rings • Thrust washers and discs • Bushings • Flanged bearings • Plungers • Printer wire guides • Spline couplings • Wear strips • Valve seats • Thermal and electrical insulators • Wafer clamping, polishing and grinding rings • Wafer guides & carriers • Vacuum pads • Die pickup collets



VESPEL is a registered trademark of DuPont
